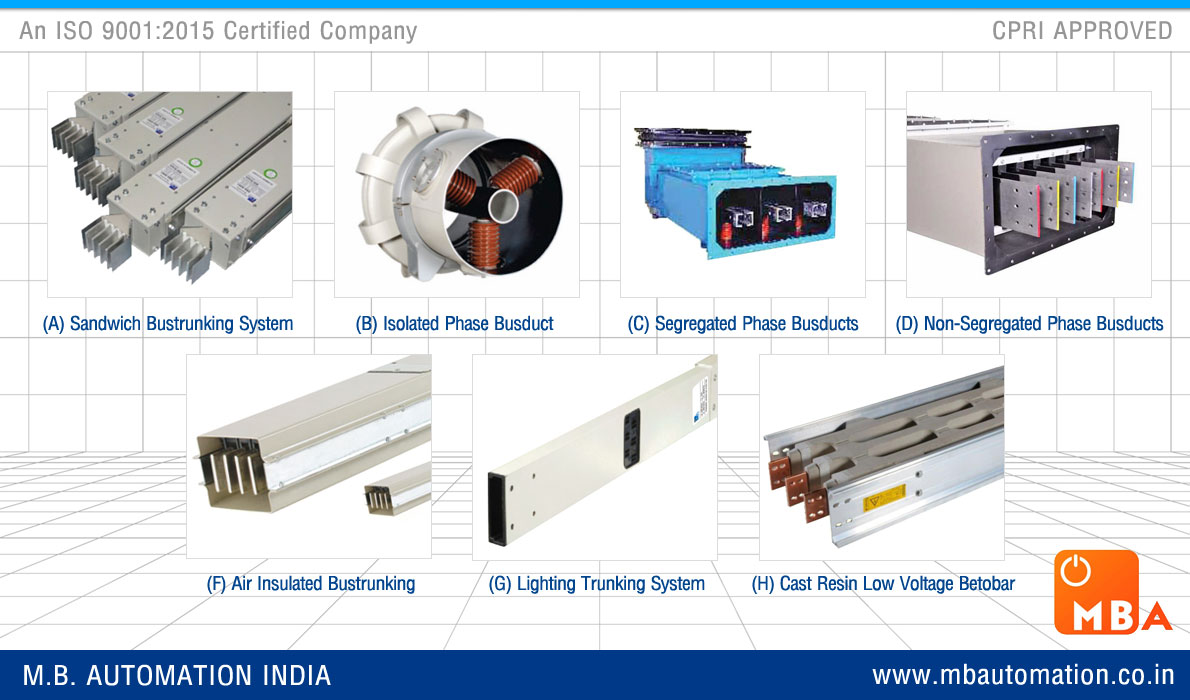

M.B. Automation has been meeting the evolving needs of power generating stations, process and manufacturing industries, infrastructure establishments, technology and technological centers and real estate developments with its complete and fully tested product line of Busduct, Bustrunking and associated equipment. We offers in the markets a full range of cast resin insulated busway systems. The concept which was already in use in the sixties in industrial installations is now in the third generation form. Due to the typical characteristics, the system guarantees the integrity of many projects world-wide, providing safe and maintenance free electrical power supplies in both Low Voltage and Medium Voltage installations.
The Metabar range cover Sandwich Bustrunking, Air Insulated Bustrunking & Lighting Trunking. Bustrunking has lower impedance in comparison to cable and conventional busducts for the same application. Lower impedance means less energy lost during distribution and this translates into cost savings.Plug-in type arrangement at regular intervals or as per customer design provides efficient power distribution. Material and manpower used in busway is lower than cable & conventional busduct. It saves money on raw materials and create less waste by buying pre-engineered lengths of busway. This system comes with provision of expansions, changes, replacement and reusing.
With rated operational voltage (Ue) 1000 Volt, AC
FEATURES
- Independent Certificate Authority ASTA – UK, CPRI-India
- Conductor Material & Ratings: Copper 630A ~ 6600A, Aluminium 400A ~ 5000A
- Rate Operational Voltage (Ue) 1000 Volt, AC
- Rated Impulse Withstand Voltate (Uimp) 12 KV (1.2/50 s)
- Enclosure Material G.I/AL
- Busbar Insulation Multi layer Class – 'F' Insulation
- Degree of Protection IP 54/ IP55 /IP65 /IP67 Fire Rating 240Min. (ISO 834) 55
M.B. Automation offers a wide range of natural air cooled Isolated Phase Busducts from 11 kV to 36 kV upto 30000A with a maximum Short Circuit Current withstand capability of 300 kA rms for 1sec. and 840 kA peak. These IPB’s have applications in all generating station from 60 MW and above.
RANGE
100A to 30000A, 11kV to 38kV
FEATURES
- Independent Phase: Nearly nil mutual induction
- Voltage Rise in Enclosure: very low
- Excellent shielding under short circuit condition: near eleimination of forces
- Negligible induction with neighouring equipements
- Suitable for adverse weather conditions-IP65
- Free Movement of conductor during expansion: No cantilever forces on insulator
- Enclosure Insulate from support structure: No undesirable current loop and hence no heating in supporting beams
BENEFITS
- It reduce proximity effect between the main current – carrying conductors of the adjacent phase to almost zero due to magnetic shielding, on the one hand, and large center spacing, on the other
- It eliminates phase-to-phase faults
- It provides complete protection for operating personnel from high touch or step voltages across the enclosure and the metallic structure.
- The bus system is easy to handle, bend and install.
M.B. Automation offer a wide range of Segregated Phase Busducts for Medium Voltage applications from 3.3 kV to 33 kV upto 5000A. Segregated Phase Busducts find applications in Power Generating Stations and Industrial or Distribution Plants for lower capacity generator connections, interconnections between switchgear and transformers.
630A to 5000A, 3.3kV to 33kV
FEATURES
- 3 Phase busbars housed in a common metallic enclosure of aluminium/ Phase segregated by non magnetic (Al) insulating (FRP) barrier
- Busbar material ALumnium alloy/ Copper in the form of flat / channels
- Busbars are supported on Procelain or epoxy insulators
- Design for degree of protection of IP55 for outdoor and IP54 for indoor busducts
BENEFITS
- Excellent shielding under Short Circuit condtion
- It minimizes phase-to-phase faults
- It provides complete protection for operating personnel from high touch or step voltages across the enclosure and the metallic structure
Used in Power Generating stations and industrial applications for lower capacity generator (2.5 MW) connections, interconnections between switchgear to transformer and switchgear to switchgear.
RANGE
630A to 6300A, 415V to 1100V
FEATURES
- 3Phase , 415V, 3 Wire.4 Wire bus bars housed in a common metallic enclosure of aluminium
- Busbar material Alumnium alloy/ Copper in the form of flat / channels
- Busbars are supported on SMC insulators
- Design for degree of protection of IP55 for outdoor and IP54 for indoor busducts
BENEFITS
- It reduces proximity effect by virtue of using flat Busbars
- The bus system is easy to handle, bend and install.
Busbar trunking for electrical distribution is an alternative to cumbersome conventional cable distribution system. It has the advantages of expansions, changes, replacenment and reusing capability in future.Busbars in enclosure are heid tight, and cannot easily slide even in vertical run when used as rising mains.Automatic polarity is maintained during installation.System can be mounted edgewise or flat wise, horizontally or vertically in any direction with all kinds of bends, and tees etc. Two sections can be electrically Isolated for maintenance and testing in installed condition without dismantling or removal of any section. Fire barrier provision with F & T rating for 2 hours can be provided as per requirement for floor and wall crossings (as per UL 1479) .
With rated operational voltage (Ue) 1000 Volt, AC
FEATURES
- Independent Certification Authority- ASTA-UK, CPRI-India
- Busbar Arrangement Air Insulated type
- Rated Operational Voltage (Ue) 1000 Volt, AC
- Rated Insulation Voltage (Ui) 1000 Volt, AC
- Rated Dielectric Voltage 3.5 KV r.m.s
- Rated Frequency 50 Hz / 60 Hz
- Busbar Insulator Glass Filled Noryl / Polyster (Class -F)
- Plug -in-Box 32~800 A
- Busbar Insulator Glass Filled Noryl / Polyster (Class -F)
BENEFITS
- Energy Saver
- Flexible Distribution
- Less Space
- Conserves Raw Materials & Produces less waste
- Reusable
M.B. Automation offers Lighting Trunking System meeting the evolving needs of power generating stations, process and manufacturing industries, infrastructure establishments, technology and technological centers and real estate developments with its complete and fully tested product line of Busduct, Bustrunking and associated equipment. We offers a full range of cast resin insulated busway systems. The concept which was already in use in the sixties in industrial installations is now in the third generation form. Due to the typical characteristics, the system guarantees the integrity of many projects world-wide, providing safe and maintenance free electrical power supplies in both Low Voltage and Medium Voltage installations.
The Metabar range cover Sandwich Bustrunking, Air Insulated Bustrunking & Lighting Trunking. Bustrunking has lower impedance in comparison to cable and conventional busducts for the same application. Lower impedance means less energy lost during distribution and this translates into cost savings.Plug-in type arrangement at regular intervals or as per customer design provides efficient power distribution.Material and manpower used in busway is lower than cable & conventional busduct. It saves money on raw materials and create less waste by buying pre-engineered lengths of busway. This system comes with provision of expansions, changes, replacement and reusing.
With rated operational voltage (Ue) 500 Volt, AC
FEATURES
- Independent Certificate Authority CPRI – India
- Conductor Material & Ratings Copper – 25A, 32A, 40A, 63A
- Rated Operational Voltage (Ue) 500 Volt, AC
- Enclosure Material Aluminium
- Busbar Insulation Flame Retardant PVC (Class ‘A’-105 Deg C)
- Section Jointing Inbuilt push fit joint
- Plug in Box rating Upto 16 A (with/without fuse)
- Degree of Protection IP 55 / IP 54
BENEFITS
- Energy Saver
- Flexible Distribution
- Less Space
- Conserves Raw Materials & Produces less waste
- Reusable
Betobar busbars have been developed as a modern, all-purpose means of efficient and safe transmission of electrical energy. They have been in manufacture for more than thirty-five years. This system complies with all the requirements for current distribution at low and medium voltage.The busbar consists of copper or aluminium conductors, embedded in an enclosure of a fire retardant, self extinguishing and homogeneous insulation mix based on epoxy cast-resin with mineral fillers ensuring high mechanical strength and chemical withstand.Standard types are available for current ratings up to 5000 A and Voltage ratings up to 17.5kV. Systems for higher current ratings or DC applications are possible on request.
The busbar line consists of a number of prefabricated elements. The electrical joining of the conductors is achieved by means of double fish plates and high tensile steel bolts.The junctions and the element ends are overcast with the same insulation mix as used for the elements. In this way an integral insulating enclosure to IP68.IK10 is guaranteed over the full length of the busbar run. Straight junctions and also elbow junctions are available each facilitating installation adjustments of 10-20 mm per standard junction.
Self-extingusihing insulation as per IEC 6033
FEATURES
- Compact Smaller Dimension
- Simple and easy for Installation
- Low Voltage Drop and High Short Circuit withstand Capacity
- Overload Capacity of +20% for 2 Hours. Degree of Protection of IP68 for L.V bus ways and IP67 for M.V bus ways as per IEC 60529
- High Mechanical Impact strength of IK.10 as per DIN 52453 & IEC 62262
- Fire Wall Bushings of S90 & S120 in accordance with EN1366-3 and NBN 713.020
- Fire Retardant Bushings A90 for Normal fire and H60 for Hydrocarbon Fire In Offshore Applications
- Self-extingusihing insulation as per IEC 60332.
BENEFITS
- Energy Saver
- Flexible Distribution
- Less Space
- Conserves Raw Materials & Produces less waste
- Reusable
